FemtoSecond Laser Processing

Femtosecond Laser Services

  • Burr-Free, Heat-Free Machining
  • High-Quality Accuracy & Surface Finish
  • Minimize or Eliminate Post-Process Deburring & Finishing Steps
  • Accuracy: +/-1 Micron
  • Ability To Work With Most Materials & Material Types
  • Materials can be Ferrous/Non-Ferrous, Plastics Such As PEEK, Polymers, and More.
  • Material Forms Include Turned Parts, Tubing, Flat Sheet, and More.
  • Texturing & Laser Marking
  • Ability To Machine Extremely Complex Designs

Femtosecond Laser Processing

Femtosecond Laser Services

  • Burr-Free, Heat-Free Machining
  • High-Quality Accuracy & Surface Finish
  • Minimize or Eliminate Post-Process Deburring & Finishing Steps
  • Accuracy: +/-1 Micron
  • Ability To Work With Most Materials & Material Types
  • Materials can be Ferrous/Non-Ferrous, Plastics Such As PEEK, Polymers, and More.
  • Material Forms Include Turned Parts, Tubing, Flat Sheet, and More.
  • Texturing & Laser Marking
  • Ability To Machine Extremely Complex Designs

Femtosecond Laser Processing

Femtosecond Laser Micromachining

Femtosecond Laser Services Trusted in Regulated Industries

Precision Femtosecond Laser Cutting for Complex, High-Tolerance Micro Components

Femtosecond laser cutting is a non-thermal, ultra-precise micromachining process that uses ultra-short laser pulses (measured in quadrillionths of a second) to remove material without generating heat. This enables the machining of fine features—like micro holes and slots—with no heat-affected zone (HAZ), tool wear, or material distortion.

At Nanotech Precision, our femtosecond laser machining services deliver unmatched sub-micron accuracy and repeatability across a wide range of materials and geometries. From medical devices to aerospace sensors and semiconductor components, we offer femtosecond laser processing for micro features that demand the highest levels of surface quality and dimensional precision. Ideal for micro hole drilling, fine slotting, and surface texturing, our femto laser system unlocks design possibilities not achievable with conventional machining.

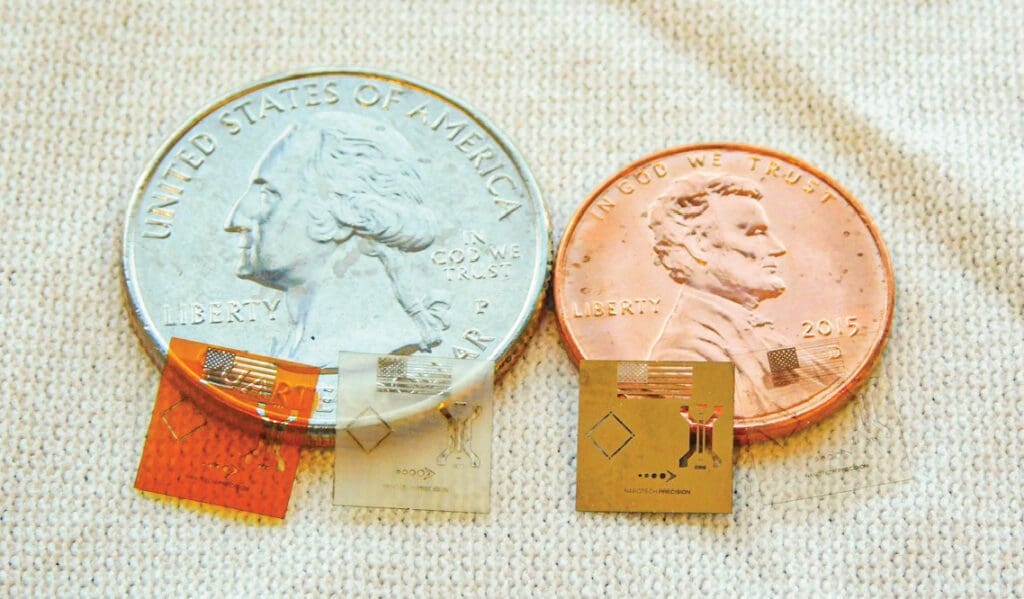

Kapton, Garolite, Tungsten, Peek

What Is Femtosecond Laser Micromachining?

Femtosecond laser micromachining (also known as femto laser cutting or femtosecond laser drilling) is a laser-based process that uses pulses so short they avoid heat transfer to the surrounding material. This is especially useful for precision components in heat-sensitive applications like medical implants, microelectronics, or aerospace components.

Imagine trying to cut an intricate design into tissue paper without burning or tearing it—femtosecond lasers offer that level of finesse, but for materials like titanium, polymers, and even precious metals. The laser pulse vaporizes material on contact, without friction, heat, or mechanical stress. This makes it ideal for achieving burr-free edges, tight tolerances, and ultra-clean surfaces.

Modern manufacturing increasingly requires features below 25 microns in diameter or width, with consistent results across high-volume runs. Femtosecond laser machining allows engineers to push the limits of design while maintaining reliability, precision, and repeatability—especially in regulated industries.

Our Capabilities in Femtosecond Laser Micro Machining

Precision That Sets Us Apart

  • Sub-micron accuracy (demonstrated 0.5 micron tolerance)
  • Hole diameters under 25 microns, slots under 20 microns
  • 5-axis femtosecond laser platform with stable, repeatable motion control
  • No heat-affected zone (HAZ), no tool wear, and no post-processing required
  • Cylindrical micro holes up to 8–10x diameter depth
  • Ideal for intricate micro feature additions on Swiss-turned or EDM parts

End-to-End Solutions

  • Full integration with Swiss machining, EDM, and micro component workflows
  • R&D-to-production support through Nanotech’s Innovation Lab
  • Process engineers with deep expertise in ferrous/non-ferrous metals, polymers, and exotic alloys
  • OEM collaboration for custom tooling, part validation, and production ramp-up

Features, Benefits, and Applications

Features

  • Accuracy: ±0.5–1 micron
  • No burrs, no thermal distortion
  • 5-axis workpiece control for advanced geometries
  • Works on metals (e.g., titanium, Inconel, MP35N, tungsten), polymers (e.g., PEEK, polyimide), and precious metals (e.g., gold, platinum)
  • Supports turned parts, tubes, flat sheets, and hybrid geometries
  • Flexible for both prototypes and full production

Benefits

  • Eliminates costly secondary finishing or deburring
  • Maintains mechanical properties of sensitive materials
  • Enables complex micro features impossible via traditional machining
  • Reduced tooling costs and faster production cycles
  • Trusted in medical, aerospace, semiconductor, and electronics manufacturing

Applications

  • Micro catheter holes and slots
  • Textured surfaces for implant bonding
  • Laser marking and traceability
  • Aerospace sensor cutouts
  • Semiconductor and circuit micromachining

Why Choose Nanotech Precision for Femtosecond Laser Micromachining?

Clients choose Nanotech Precision when accuracy, material control, and design freedom can’t be compromised. Our femtosecond laser machining services combine advanced technology with deep process expertise to deliver ultra-precise micro features that support high-volume production. With in-house engineering, cross-disciplinary integration, and a passion for solving complex challenges, we’re a trusted partner in regulated, innovation-driven industries.
